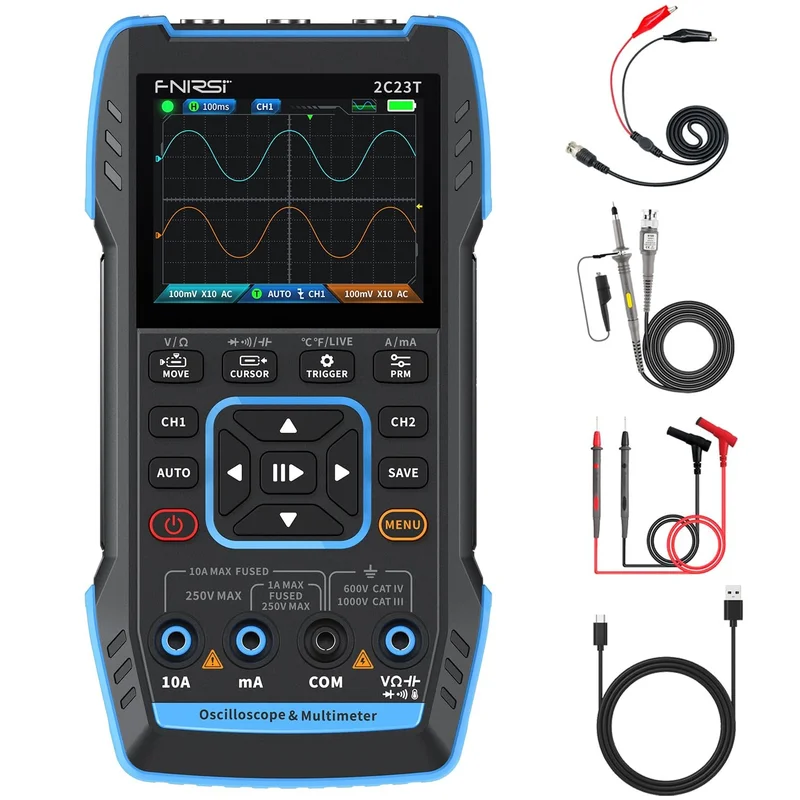

FNIRSI 2C23T 3 in 1 Handheld Oscilloscope Multimeter DDS Generator, 2 Channels, 10MHz Bandwidth, 50MSa/s Sampling Rate, 10000 Counts, Voltage, Current, Capacitor, Resistor, Diode Test-Quality Guarantee

Description

Oscilloscope Mode2 channel handheld oscilloscope, 10MHz bandwidth, real-time sampling rate 50MSa/s, record depth 32kb, maximum measurement voltage ±400V, automatic measurement function, trigger function auto/normal/single, 200mv/div-10v/div vertical sensitivity, support waveform image storage and export.

Multimeter Mode4-digit 10000 Counts. AC Voltage: 0-750V, DC Voltage: 0-999.9V, DC/AC Current: 0-9.999A, Resistance: 0-99.99M, Capacitance: 0-99.99mF, Temperature: -55°C-1300°C/-67~2372, Diode, Continuity Measurement. An ideal multi-function meter for professionals, factories, schools, hobbyists or home use.

Signal GeneratorThe maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.

Excellent DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8-inch 320*240 resolution HD LCD display, built-in 3000mAh rechargeable Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A power adapter charging.

Save functionone-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.
