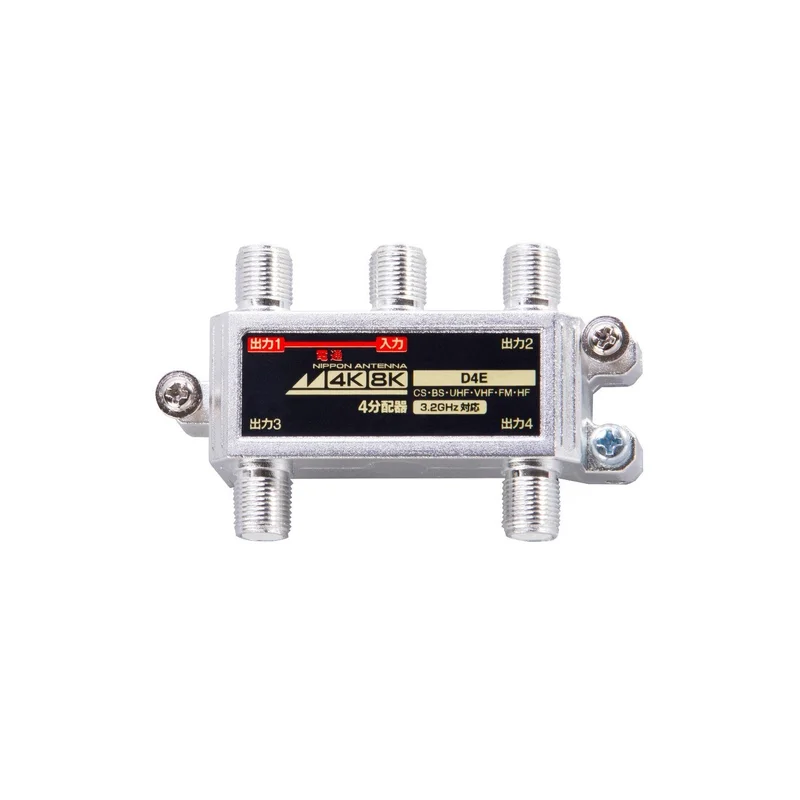

Nippon Antenna 4 Splitter for Joint Reception, Indoor Use, Supports 4K8K Broadcasting, 1 Terminal, D4E-Quality Guarantee

Description

[Uses] Use to distribute TV signals indoors This device is a high-performance 4 distributor that supports the HF band to CS-IF bandwidth (10MHz to 3224MHz). Supports 4K 8K broadcast

[Features] Zinc die-cast with integrated connection and housing, and the back case is pressure-fitted to provide a high shield effect and effectively prevents signal leakage and leakage. Mounting screws that are temporarily fixed on the main body make it easy to install on the wall

[Features] The F seat terminal can also be attached to a 7C connector. (If the outer diameter of the core wire is thicker than 0.06 inch (1.5 mm), please use a connecting plug with pins. The yellow insulation allows you to see the input terminal at a glance. By attaching the main unit side-by-side, it can be installed in a space saving space

[Performance] Distribution loss: (222 MHz – 770 MHz) 8.2 dB (770 MHz – 2150 MHz) 9.4 – 11.0 dB Current pass terminal: Input – Output 1 intervals (Max DC 15 V, 0.8 A/AC 30 V, 1A)

Accessories: Mounting screws x 2 (pre-installed on the main unit), 5C F type fittings x 5, instruction manual (English language not guaranteed)
